KCB系列齒輪泵KCB SERIES GEAR PUMP

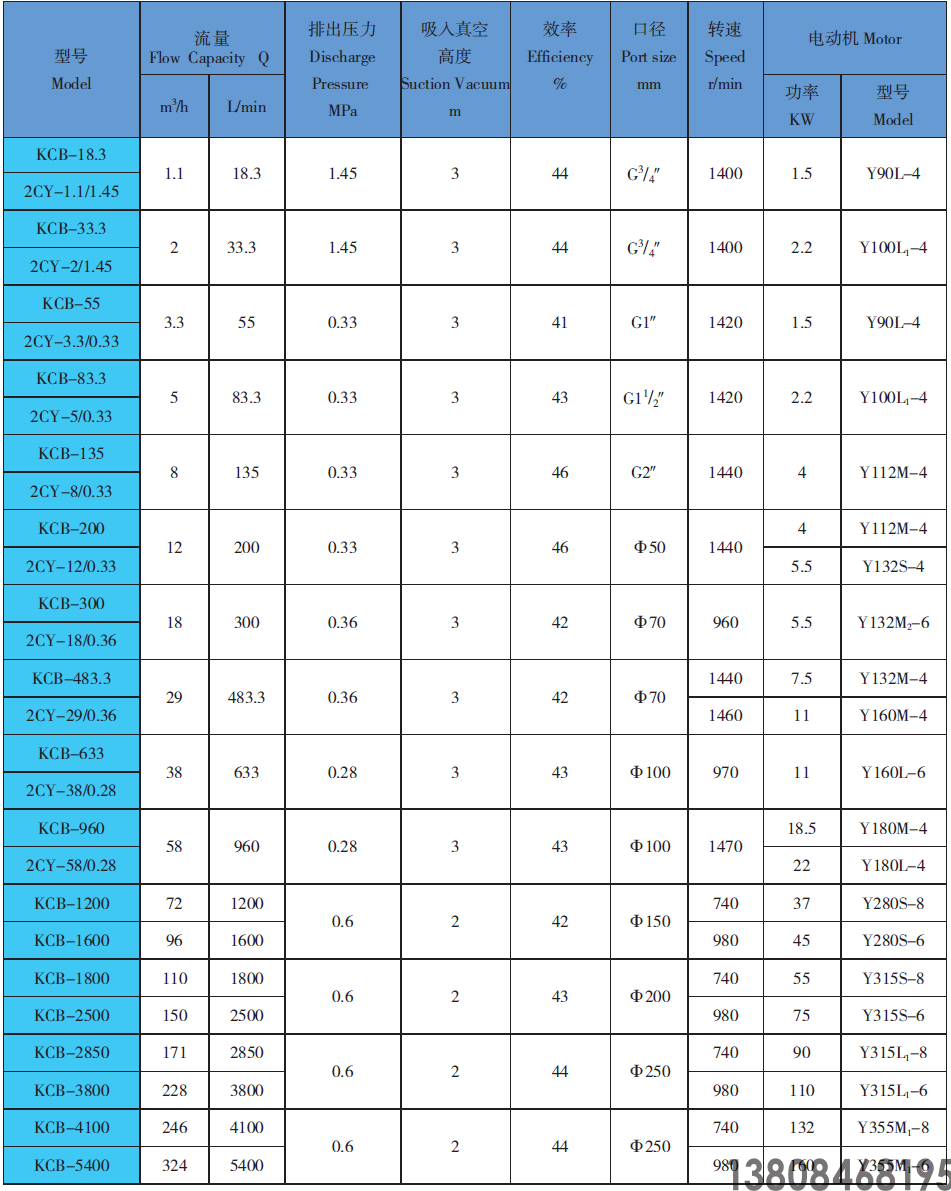

一、產品介紹：
    KCB齒輪泵適用于輸送各種油類、如重油、柴油、潤滑油，配用銅齒輪可輸送內點低液體，如氣油、笨等所以稱為齒輪油泵，不銹鋼齒輪泵可輸送飲料和腐蝕性的液體。不適用于含硬質顆?；蚶w維的，適用粘度為5×10-5～1.5×103m2/s。溫度不高為70℃，如需輸送高溫液體，單級單吸油泵請使用耐高溫齒輪油泵，可輸送300℃以下液體。

二、KCB齒輪油泵特點：
1、 該電動抽油泵結構簡單緊湊，使用和保養方便。
2、 具良好的自吸性，故每次開泵前不須灌入液體。
3、 潤滑是靠輸送的液體而自動達到的，故日常工作時無須另加潤滑液。
4、利用彈性聯軸器傳遞動力可以補償因安裝時所引起的微小偏差。在油泵工作中受到不可避免的液壓沖擊時，能起到良好的緩沖作用。

三、結構說明：
    KCB齒輪油泵泵體、齒輪、前后泵蓋、安全閥、軸承及密封裝置等零、部件組成.
1、泵體、前后蓋等零件為灰鑄鐵件，齒輪用優質碳素鋼制作；亦可根據用戶需要用銅材或不銹鋼制作。
2、安全閥。KCB系列油泵在后泵蓋或泵體上方裝有安全閥，齒輪油泵 當泵或排出管道發生故障或?qū)⑴懦鲩y門完全關閉而產生高壓和高壓沖擊時安全閥就會自動打開，卸除部分或全部的高壓液體回到吸入腔，從而對泵及管道起到安全保護作用。

3、軸承。2CY系列油泵采用DU軸承；可根據用戶要求采用錫青銅軸承。&0818.3-83.3、2CY1.1齒輪油泵采用DU軸承；可根據用戶要求采用錫青銅軸承。
4、軸封。本系列齒輪油泵產品的軸端密封有骨架油封、機械密封及填料密封三種結構。
a. 骨架油封：骨架油封的特點是維護、更換方便，成本低，但壽命較短。丁晴膠骨架油封適用于1001：以下工作環境；氟橡膠骨架油封適用于200℃以下工作環境。
b. 1機械密封：機械密封的特點是密封可靠、壽命長，成本高。機械密封的基體用不銹鋼制造， 動、靜環視介質不同分別由YG8硬質合金或YG8-石墨制造，使用溫度在200℃以下。
c. 填料密封：填料密封僅用于高溫油泵，其特點是耐高溫，有少量泄漏。使用過程中需根據泄漏情況經常進行調整，使用溫度在250℃：以下。
    用戶需何種型式的密封結構需在訂貨時注明。凡訂貨時未注明者均按丁晴膠骨架油封或填料結構供貨。
5、進、出油口型式：
    2CY系列齒輪油泵進、出油口為與口徑對應的英制管螺紋(G),直接制作在泵體上。
    KCB18.3-200、2CY1.1-12齒輪式輸油泵配帶管螺紋口的腰形法蘭；其余泵不配帶法蘭，當用戶需要配帶法蘭時，應在訂貨中注明。
6、泵與電機用彈性聯軸器連接，并安裝在公共底盤上。

Product Introduction:

The KCB gear pump is suitable for conveying various oils, such as heavy oil, diesel, and lubricating oil. Copper gears can be used to transport low-viscosity liquids such as gas and benzene, which is why it is called a gear oil pump. Stainless steel gear pumps can transport beverages and corrosive liquids. It is not suitable for liquids containing hard particles or fibers and is suitable for viscosities ranging from 5×10-5 to 1.5×103m2/s. The temperature should not exceed 70℃. For high-temperature liquids, a high-temperature-resistant gear pump should be used, which can transport liquids below 300℃.

Features of KCB Gear Pump:

The electric oil pump has a simple and compact structure, making it easy to use and maintain.

It has good self-priming ability, so there is no need to fill liquid before each pump start.

Lubrication is automatically achieved by the conveyed liquid, so there is no need to add lubricating oil during daily operation.

Power transmission through an elastic coupling can compensate for small deviations caused by installation. It can provide a good cushioning effect when subjected to unavoidable hydraulic shocks during oil pump operation.

Structure Description:

The KCB gear pump consists of a pump body, gears, front and rear pump covers, safety valve, bearings, and sealing device. The pump body, front and rear covers, and other parts are made of gray cast iron, and the gears are made of high-quality carbon steel. Copper or stainless steel can also be used according to user needs. The safety valve is installed on the rear pump cover or above the pump body to provide safety protection for the pump and pipeline. The bearings use DU bearings or tin bronze bearings, and the shaft end seal has three structures to choose from: skeleton oil seal, mechanical seal, and packing seal. The inlet and outlet ports are made with British pipe threads (G) directly on the pump body. The pump is connected to the motor with an elastic coupling and installed on a common base.

.

四、使用時應注意事項：

1、安裝齒輪油泵：

a. 安裝前應檢查泵在運輸中是否受到損壞，如電機是否受潮、泵進出口的防塵蓋是否損壞而使污物進入泵腔內部等。

b. 安裝管道前應先對管道內壁用清水或蒸氣清洗干凈。安裝時應避免使管道的重量由泵來承擔，以免影響泵的精度及壽命。

c. 齒輪油泵應盡量靠近油池；管道各聯接部位不得漏氣、漏液，否則會發生吸不上液體的現象。

d. 為防止顆粒雜盾等污物進入泵內，應在吸入口安裝金屬過濾網，過濾精度為30目/in，過濾面積應大于進油管橫截面積三倍以上。

e. 進出口管路建議安裝真空表及壓力表，以便監視泵的工作狀態。

f. 當油池較深、吸油管路較長或介質粘度較高而造成真空度過高時，可將進油管加粗一擋。吸油管路較長時還應安裝底閥。

2、齒輪油泵工作前的檢查：

a. 泵的各緊固件是否牢固。

b. 主動軸轉動是否輕重均勻一致。

c. 進出管道的閥門是否打開。

d. 泵的旋轉方向是否符合要求。

e. 初次使用前應向泵內注入適量介質。

3、齒輪油泵工作時的維護：

a. 注意齒輪油泵的壓力表及真空表的讀數應符合該泵所規定的技術規范以內。

b. 當齒輪油泵在運轉中有不正常的噪音或溫升過高時，應立即停泵檢查。

c. 一般情況下，不得任意調整安全閥，如需調整時，要用儀器校正。

d. 額定壓力的1.5-2倍。4、泵的停止

a. 切斷電源。

b. 關閉進出管道閥門。

    KCB133-960、2CY8-60齒輪式輸油泵有采用DU軸承，錫青銅軸承和滾動軸承三種結構，需在訂貨時注明。訂貨時未注明者均按DU軸承結構供貨。

    軸承為內置型式，依靠被輸送介質進行潤滑；011軸承和錫青銅軸承能在非潤滑性介質中工作。

4. Precautions for installing gear oil pump:

a. Before installation, check whether the pump has been damaged during transportation, such as whether the motor is damp, whether the dust cover of the inlet and outlet of the pump is damaged and the dirt enters the pump cavity, etc.

b. Before installing the pipeline, clean the inner wall of the pipeline with clean water or steam. During installation, avoid letting the weight of the pipeline be borne by the pump to avoid affecting the accuracy and service life of the pump.

c. The gear oil pump should be placed as close to the oil tank as possible; all joints of the pipeline should not leak air or liquid, otherwise, the phenomenon of unable to suck liquid will occur.

d. In order to prevent impurities such as particles and debris from entering the pump, a metal filter screen with a filtration accuracy of 30 mesh/in should be installed at the suction port, and the filtration area should be more than three times the cross-sectional area of the inlet pipe.

e. It is recommended to install a vacuum gauge and a pressure gauge on the inlet and outlet pipelines to monitor the working status of the pump.

f. When the oil tank is deep, the suction pipe is long, or the viscosity of the medium is high, causing the vacuum degree to be too high, the inlet pipe can be thickened by one level. When the suction pipe is long, a bottom valve should also be installed.

5. Inspection before gear oil pump operation:

a. Whether all fasteners of the pump are firm.

b. Whether the rotation of the drive shaft is light and uniform.

c. Whether the valves of the inlet and outlet pipelines are open.

d. Whether the rotation direction of the pump meets the requirements.

e. Before first use, inject an appropriate amount of medium into the pump.

6. Maintenance during gear oil pump operation:

a. Pay attention to whether the pressure gauge and vacuum gauge of the gear oil pump meet the technical specifications specified by the pump.

b. When abnormal noise or excessive temperature rise occurs during the operation of the gear oil pump, stop the pump immediately for inspection.

c. In general, do not adjust the safety valve arbitrarily. If adjustment is necessary, use an instrument for calibration.

d. 1.5-2 times of rated pressure.

7. Pump stop:

a. Cut off power supply.

b. Close inlet and outlet pipeline valves.

KCB133-960 and 2CY8-60 gear oil pumps have three types of structures: DU bearings, tin bronze bearings, and rolling bearings. Please specify when ordering. If not specified when ordering, DU bearing structure will be supplied by default.

The bearing is an embedded type, relying on the conveyed medium for lubrication; 011 bearings and tin bronze bearings can work in non-lubricating media
